HIGHSIDER CONERO EVO BLACK EDITION handlebar end mirror with LED turn signals

HIGHSIDER CONERO EVO BLACK EDITION handlebar end mirror with LED turn signal. The mirror is suitable for all 7/8 inch and 1 inch aluminum or steel handlebars with a handlebar inner diameter of 12 to 22 mm. The mirror can be used right and left, E.tested, piece

Packing unit: 1 piece

Our HIGHSIDER CONERO series lives on a minimalist design and fits perfectly with undisguised motorcycles. The shapely and high-quality machined aluminum add-on parts give your roadster face and character. The HIGHSIDER CONERO series brings you back to the time when a motorcycle was just allowed to be a motorcycle – reduced to ride, experience and experience.

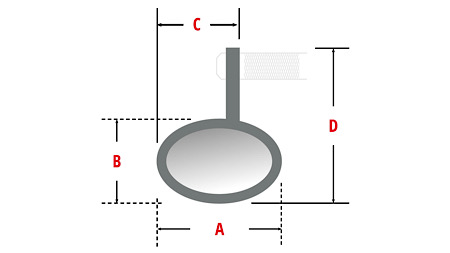

Dimensions:
A/B Ø head: 98 mm
C Total width: 65 mm
D Total height: 190 mm
Weight: 290 g

Connections:
Yellow = turn signal (+)
Black = ground (-)

Power consumption:
13.5V/ 0.164A/ 2.21W

Scope of delivery:
1x handlebar end mirror
1x clamping sleeve Ø 12 mm
1x clamping sleeve Ø 16 mm
1x spacer sleeve Ø 14 mm
1x spacer sleeve Ø 18 mm
1x spacer sleeve Ø 22 mm
1x M6 central screw
1x M6 cone nut

Tip:
A mounting tutorial is available on YouTube in our channel (HIGHSIDER Tips & Tricks). Link:

Notes:
This rear view mirror is only suitable for hanging mounting!
It must always be installed 2 pieces, because turn signals are integrated. These replace your OLD turn signals.
To close any holes for mounting the original handlebar mirrors please use the HIGHSIDER caps.
