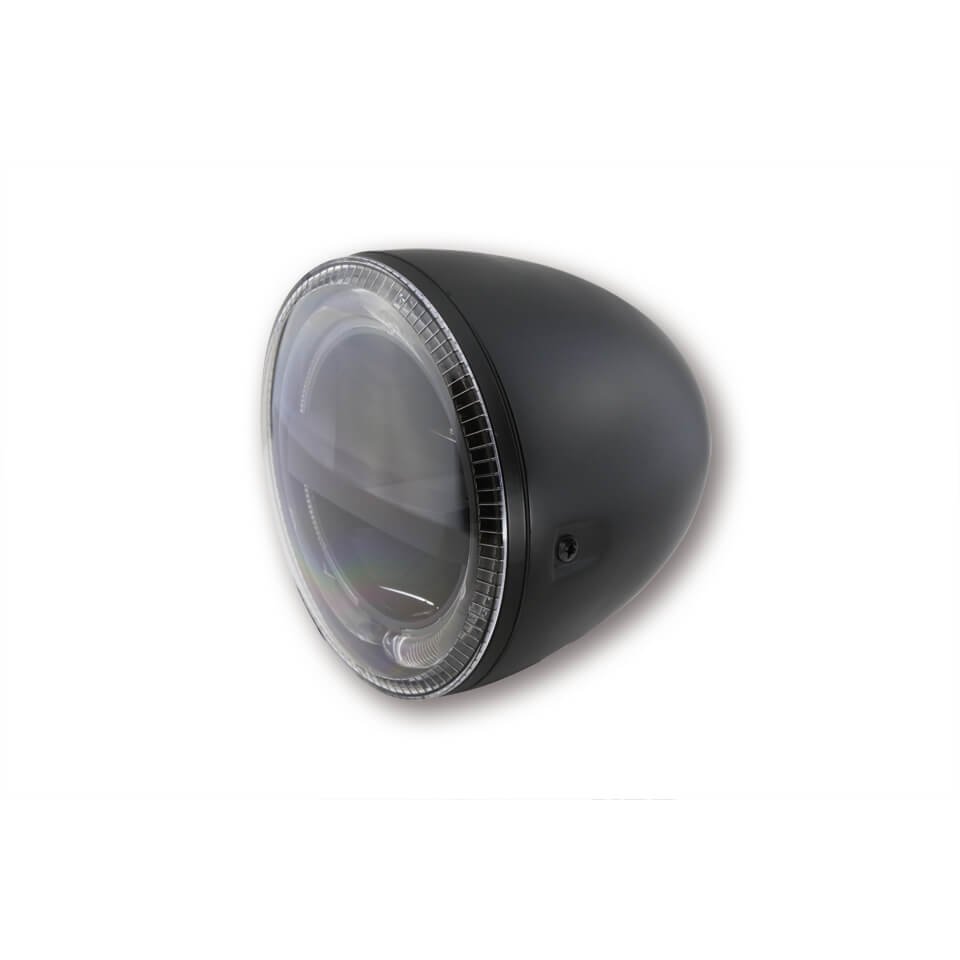

HIGHSIDER 5 3/4 inch LED headlight CIRCLE, E-approved.

The CIRCLE headlight from HIGHSIDER is a 5 3/4 inch LED headlight with a unique design and advanced technology. It features Light Guide technology, which produces a very even and homogeneous light ring with a daytime running and parking light function. The headlight comes in a high-quality metal housing, available for either bottom or side mounting.

With the CIRCLE headlight, you can not only see better but also be seen, giving your bike a distinctive style. The HIGHSIDER headlight series is known for its exceptional design and perfect technology, making it a standout feature for any motorcycle.

The dimensions of the headlight insert are 146.5 mm in diameter, with a depth of 167 mm including the glass. It can be fixed laterally with M6 fixing screws.

The connections for the headlight are as follows:
– 12.5 Volt DC power supply
– 3 plugs:
– Green cable: Ground
– White cable: Low beam
– Blue cable: High beam
– Brown cable: Parking light
– Red cable: Daytime running light

The scope of supply includes:
– 1 x main headlamp
– 2 x hexagon socket screws
– 2 x 4 mm washers
– 2 x 2 mm washers
